Space EMI shielding LCP

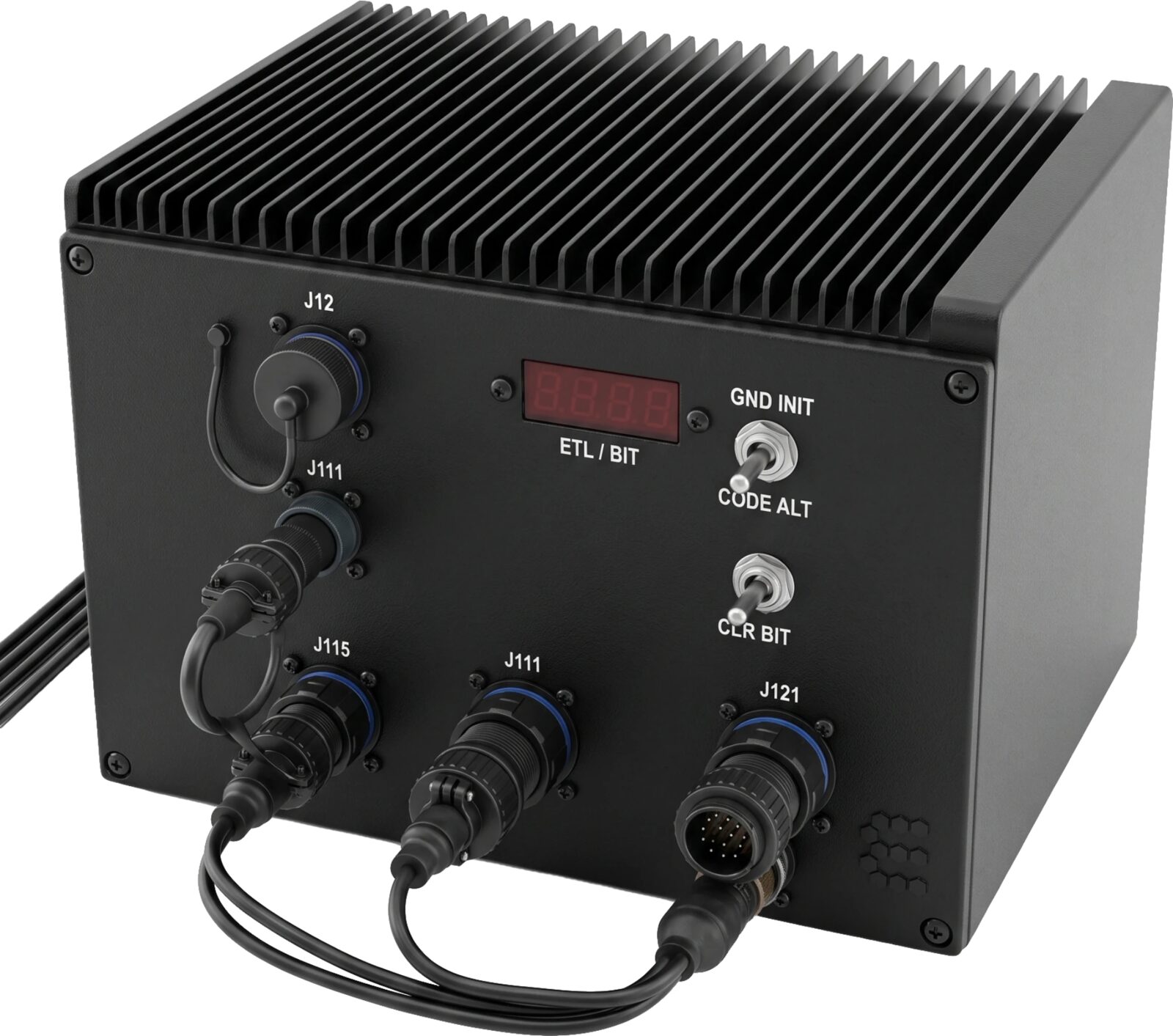

LCP Spectrum Silence™
Space-grade LCP shielding compound delivering >30 dB/mm EMI attenuation from 30 MHz to 110 GHz with low magnetic remanence.
LCPdCNTShielding fillersInjection molding pellets
2 docsView Material
Products
EMI shielding and absorbing
EMI Shielding and Absorbing
Elect Nano EMI materials combine discrete carbon nanotube networks with application-specific resin and filler systems to deliver shielding, absorption, dielectric control, and processable part formats for RF-sensitive electronics.
6 available materials listed
EHF absorbing COC

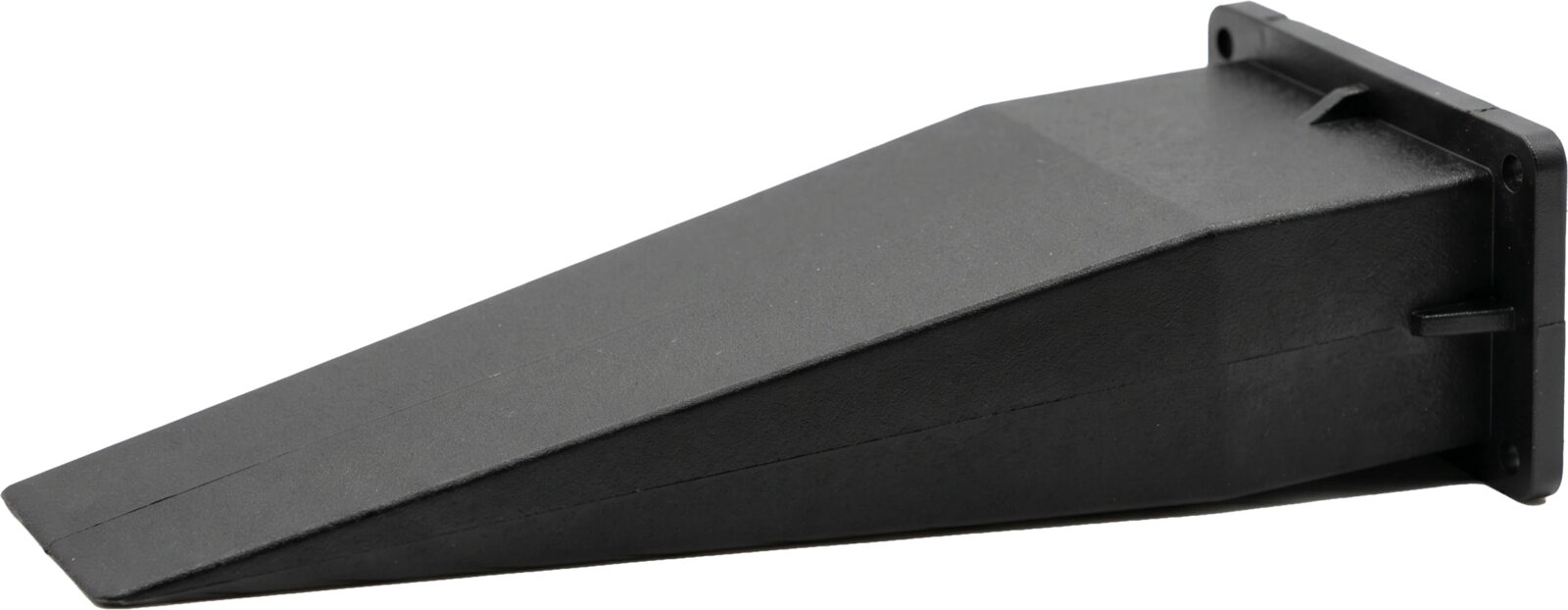

THE TERmmINATOR™ 2 JUDGMENT Dk
Toughened high-temperature COC absorber with tuned dielectric loss for EHF and millimeter-wave molded RF components.
COCdCNTInjection molding pellets
2 docsView Material
EHF absorbing COC

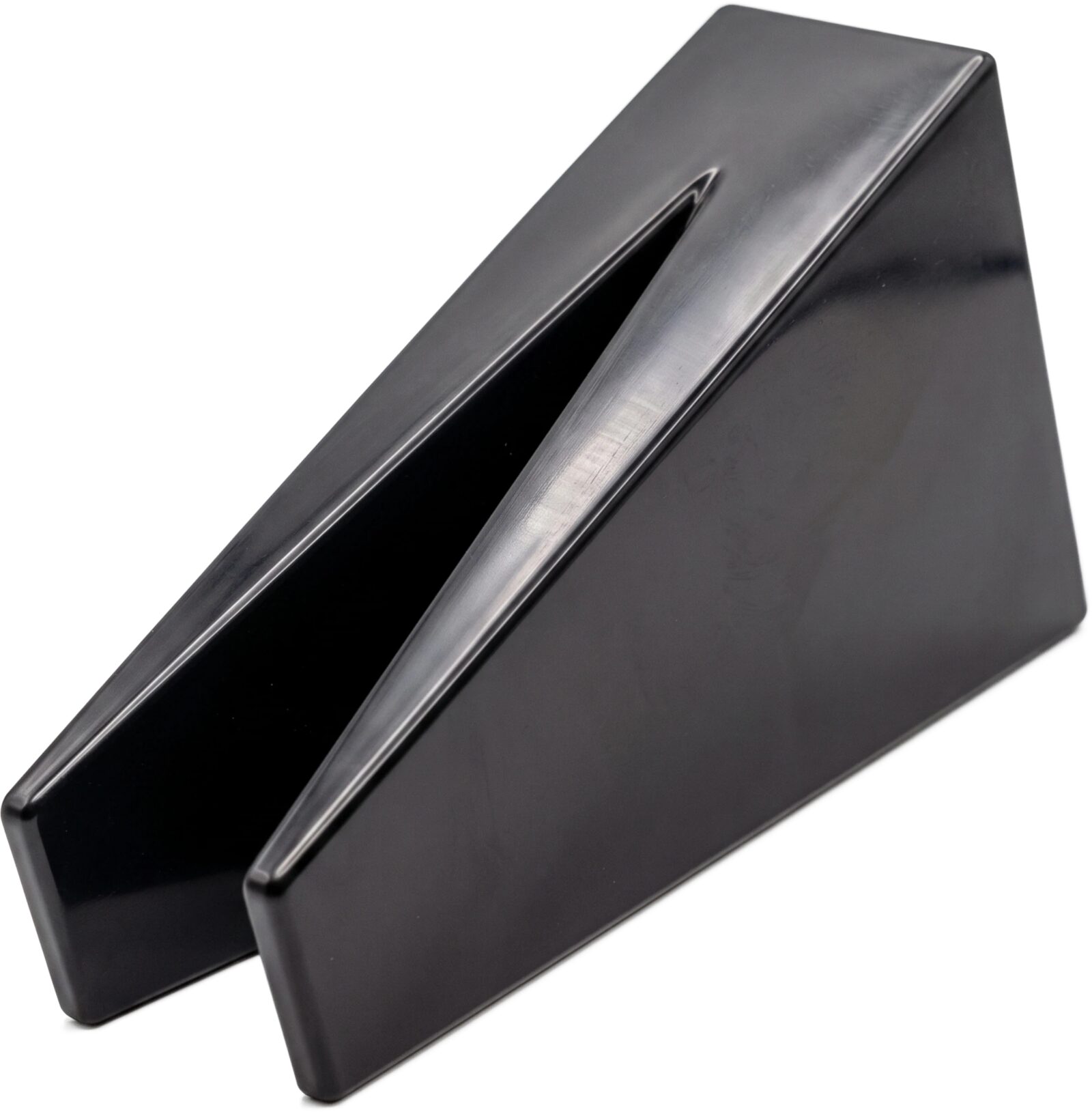

THE TERmmINATOR™ COC
High-temperature COC EMI absorber for molded EHF components needing uniform conductivity, low moisture uptake, and low reflectance.
COCdCNTInjection molding pellets
1 docsView Material
EMI shielding silicone

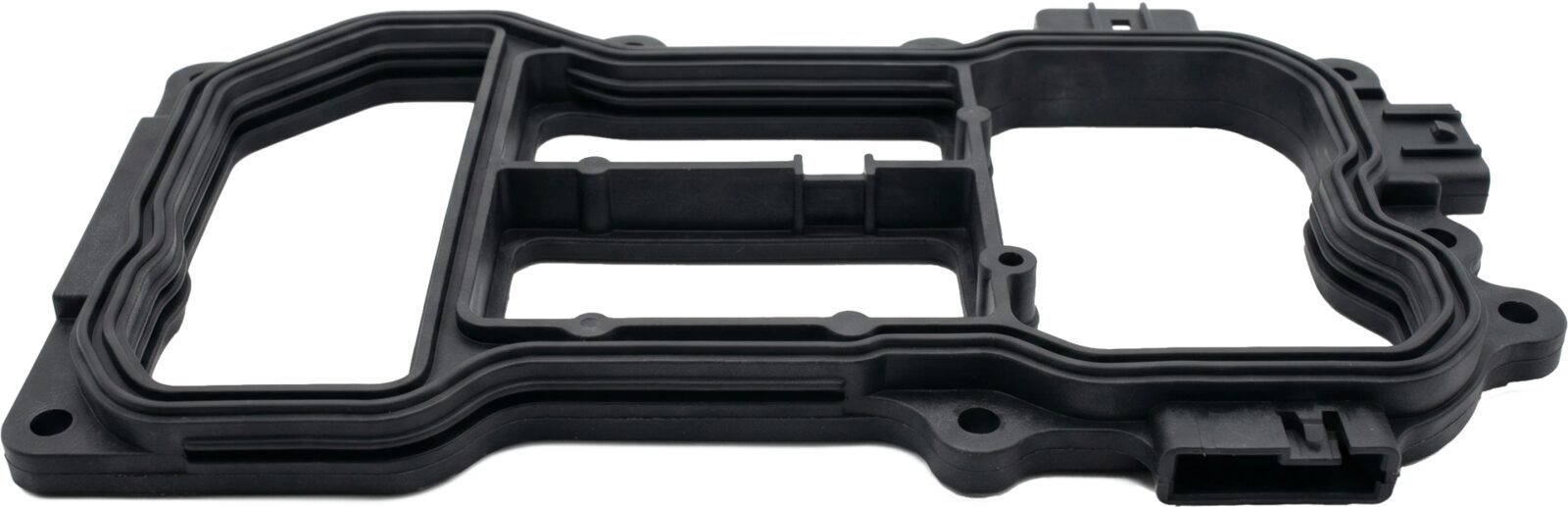

LSR 75A EMI
Two-part 75A liquid silicone rubber for molded EMI gaskets, gap pads, connector seals, inserts, and encapsulation.
LSRdCNTTwo-part LSR
1 docsView Material
EMI shielding thermoplastic elastomer

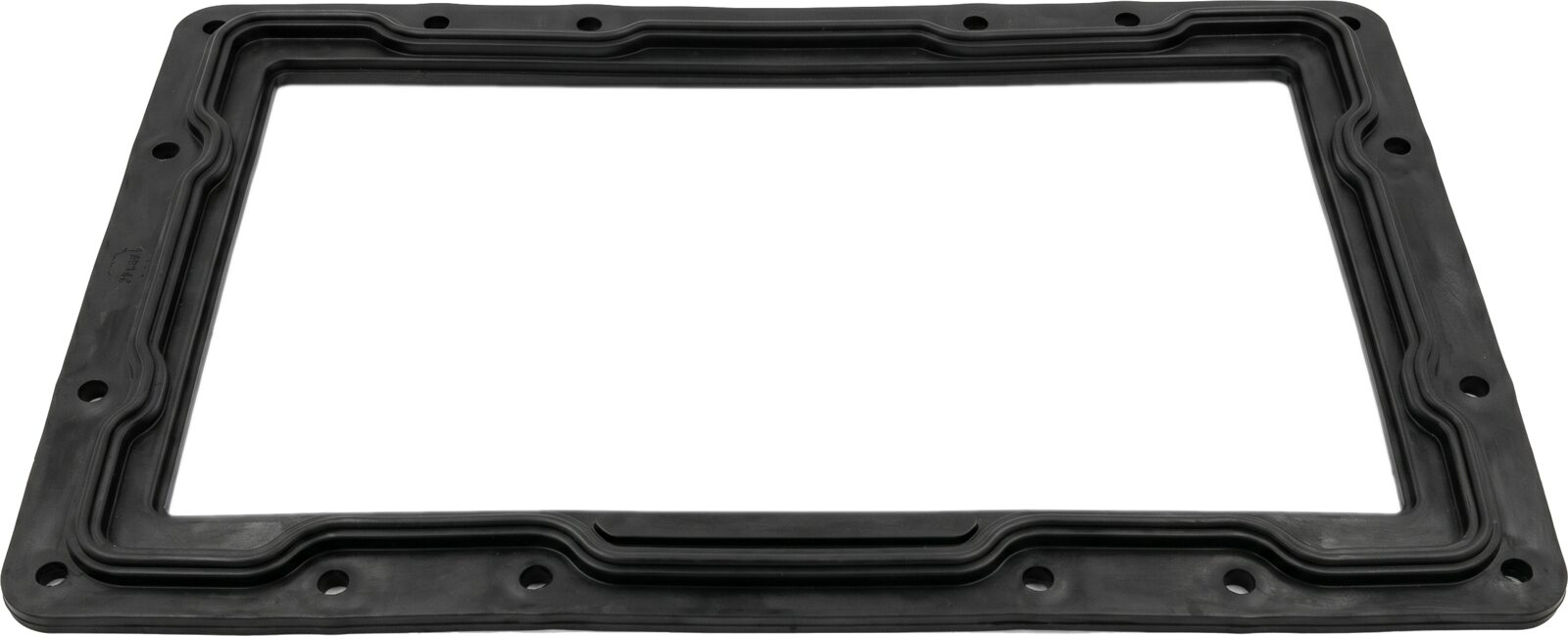

TPU 95A EMI
High-elongation TPU EMI elastomer with 44.5 dB/cm total shielding at 28 GHz and dCNT surface uniformity.
TPUdCNTThermoplastic elastomer pellets
1 docsView Material
EMI shielding thermoplastic copolyester elastomer

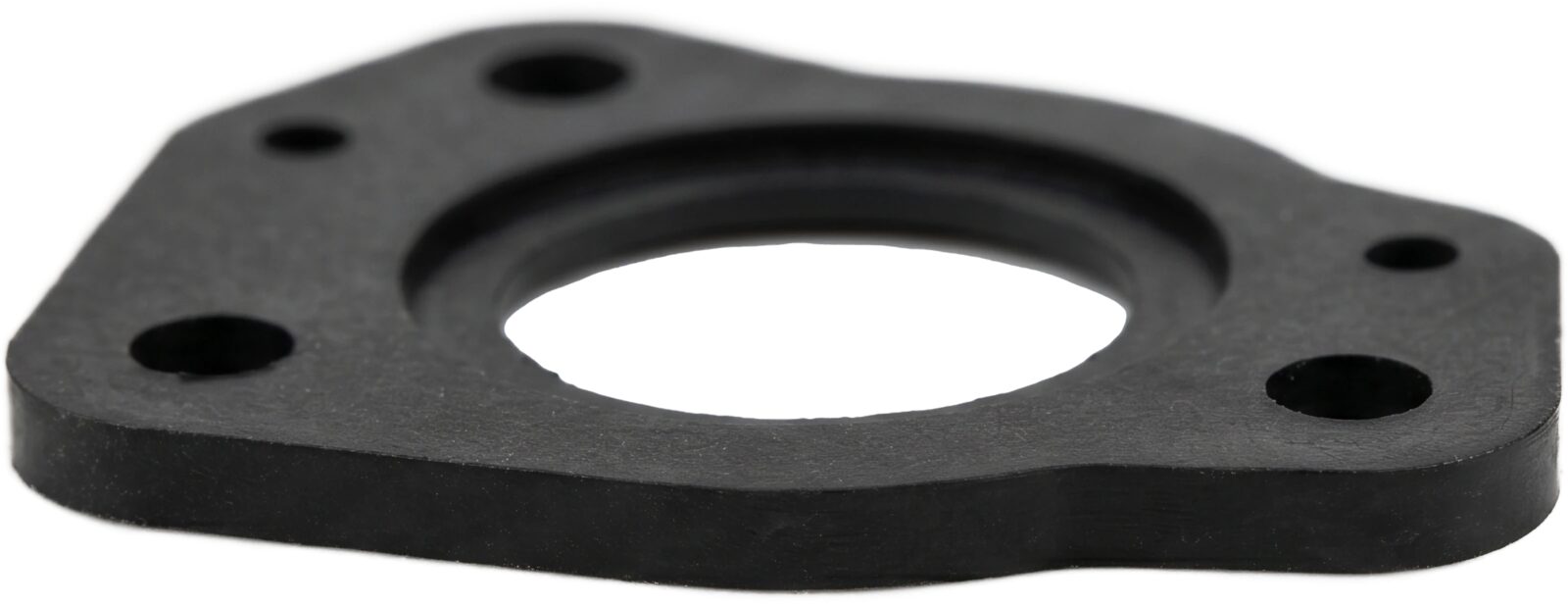

TPC 95A EMI
TPC EMI elastomer with the strongest line-card shielding response: 55.24 dB/cm total shielding at 28 GHz.
TPCdCNTThermoplastic elastomer pellets
1 docsView Material
Platform Benefits
- Current product line spans LCP, COC, LSR, TPU, and TPC material systems
- Supports both rigid molded housings and flexible gasket or interface components
- Includes space-focused options for low outgassing, atomic oxygen resistance, demisability, and low magnetic remanence
- Offers EHF and millimeter-wave absorber options with tuned dielectric behavior
Applications
Satellite electronics enclosuresRF module housingsMillimeter-wave absorbersMolded EMI gasketsConnectors and over-molded insertsDefense electronics packaging
Technical Highlights
LCP Spectrum Silence™ reports >30 dB/mm shielding effectiveness from 30 MHz to 110 GHz
TPU and TPC elastomer line-card grades report 44.5 and 55.24 dB/cm total shielding at 28 GHz
LSR 75A EMI reports 31.1 dB/cm total shielding at 27.5 GHz
THE TERmmINATOR™ COC grades are positioned for EHF millimeter-wave dielectric loss and absorption
Limitations and Qualification Notes
Final EMI performance depends on part geometry, wall thickness, seams, grounding, and test setup
Space use requires mission-specific review for outgassing, atomic oxygen, thermal cycling, and demisability
Mechanical values listed as TBD in any current TDS should be validated before design lock
Material sample review
Request samples for EMI Shielding and Absorbing.
Submit application requirements, target properties, and sample needs so Elect Nano can recommend the right evaluation format.
