An Introduction to Nanomaterials

From smartphones and flexible displays to lightweight composites and advanced optical coatings, nanomaterials are quietly reshaping modern technology. But what exactly are they, and why do they behave so differently from conventional materials? In this article, we'll walk through what nanomaterials are, why their properties change at the nanoscale, and how engineers put those changes to work.

Materials have always been at the heart of technological progress. They are the foundation beneath breakthroughs in electronics, semiconductors, telecommunications, aerospace, optics, and manufacturing. Each leap to a better material has meant higher performance, greater reliability, or a new design option that did not exist before.

For decades, the standard way to improve a material was to alter its bulk composition or mix in micron-scale fillers that improved mechanical, electrical, magnetic, optical, or chemical behavior. The challenge is that gains in one property often come at the cost of another. Striking the right balance can take round after round of testing and development, adding cost and time while still falling short of what the application demands. This is where nanomaterials begin to change the equation.

What Are Nanomaterials?

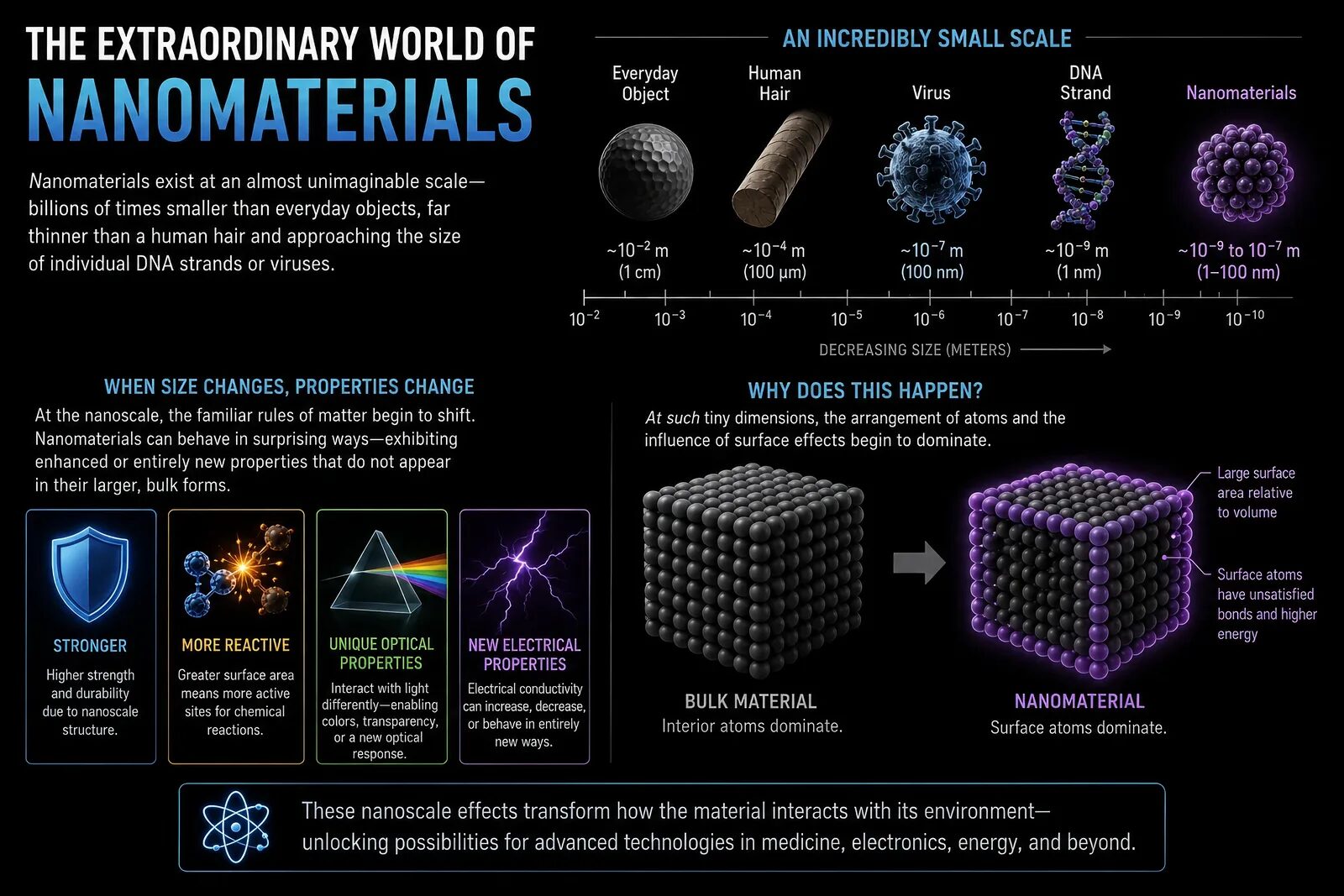

Nanomaterials are materials with features at the nanoscale, commonly around 1 to 100 nanometers. At those dimensions, matter can show physical, chemical, mechanical, electrical, magnetic, and optical behavior that differs from the same material in bulk form.1

Carbon is a useful example. In bulk form, carbon appears as graphite, diamond, and disordered carbon-rich materials such as soot or charcoal. But engineer that same element into a carbon nanotube or a sheet of graphene and the behavior changes dramatically. The nanoscale structure gives electrons different pathways through the material, while the carbon-carbon bonding network can provide exceptional stiffness and strength.

Things get even more useful when a nanomaterial is combined with a host material. The resulting composite can outperform either ingredient alone, or gain a property that neither one had in a practical form on its own. Polymer composites reinforced with carbon nanotubes are a clear example. A neat polymer may be electrically insulating and mechanically limited, while loose nanotube powder is difficult to use as a finished part. Combine the two well and the nanotubes can reinforce the polymer matrix while also creating electrical pathways through it.

The most powerful feature of nanomaterials is tunability. By adjusting size, aspect ratio, surface chemistry, dispersion quality, and filler loading, engineers can target specific property windows for a given application. The hard part is not simply adding a nanoscale ingredient. The hard part is dispersing it, bonding it to the host, and preserving the property in the final coating, molded part, film, adhesive, or composite.

Key Types Of Nanomaterials

Nanomaterials are often grouped into organic, inorganic, carbon-based, and hybrid families. Organic and bio-derived nanoscale materials include cellulose nanofibers, DNA, silk nanofibers, proteins, and polymer nanostructures. Inorganic nanomaterials include metals, metal oxides, ceramics, semiconductors, magnetic particles, and other engineered nanoscale solids. Carbon nanomaterials, including carbon nanotubes and graphene, sit across many application areas because they can affect electrical, mechanical, thermal, and optical behavior at low loading levels.

Electronic Nanomaterials

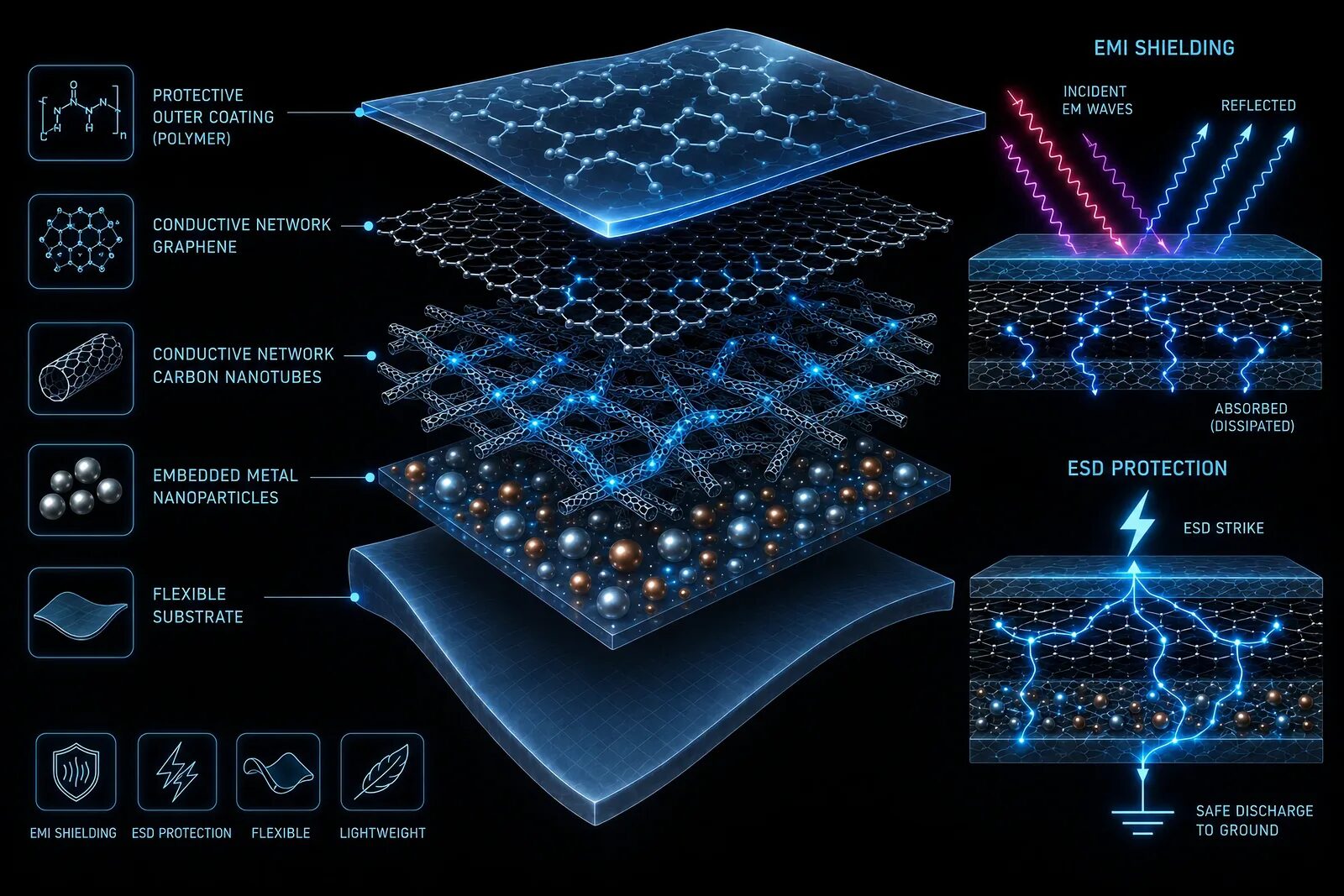

Electronic nanomaterials sit at the leading edge of the electronics and semiconductor industries. They support smaller devices, flexible electronics, transparent conductive films, electrostatic control, and broad-spectrum EMI shielding. In packaging and handling applications, carbon nanotube polymer nanocomposites have been studied for antistatic behavior, while multilayer polymer nanocomposites are an active area for EMI shielding design.23

Carbon nanotubes and graphene are forms of carbon assembled from nanoscale graphitic structures. Their geometry and electronic structure can create strong electrical pathways at very low mass loading compared with many conventional fillers. In polymer composites, well-dispersed nanotube networks can raise electrical conductivity while preserving more of the base polymer's density, flow, and mechanical behavior than high-loading metallic filler systems typically allow.4

Metal nanomaterials can also make composites electrically conductive at lower filler loadings than larger particles require. Silver nanowires are a good example: their elongated shape helps them form percolated networks at lower volume fractions than many spherical particles can achieve.5 Metal oxides add another design option. Indium tin oxide is widely associated with transparent conductive coatings, while zinc oxide appears in sensors, transparent electronics, and piezoelectric devices.

Quantum dots are another important electronic nanomaterial family. Their optical and electronic behavior depends strongly on nanoscale size and surface chemistry, which is why they appear in display and light-emitting-device research.6

Two-dimensional materials deserve special mention. Graphene, a single layer of carbon atoms in a hexagonal lattice, helped establish the modern 2D materials field because of its unusual carrier behavior and intrinsic mechanical strength.78 That combination makes graphene and related 2D materials attractive for flexible devices, transparent electrodes, sensors, and next-generation electronic components, even though practical adoption still depends on cost, defects, interfaces, and scalable manufacturing.9

Magnetic Nanomaterials

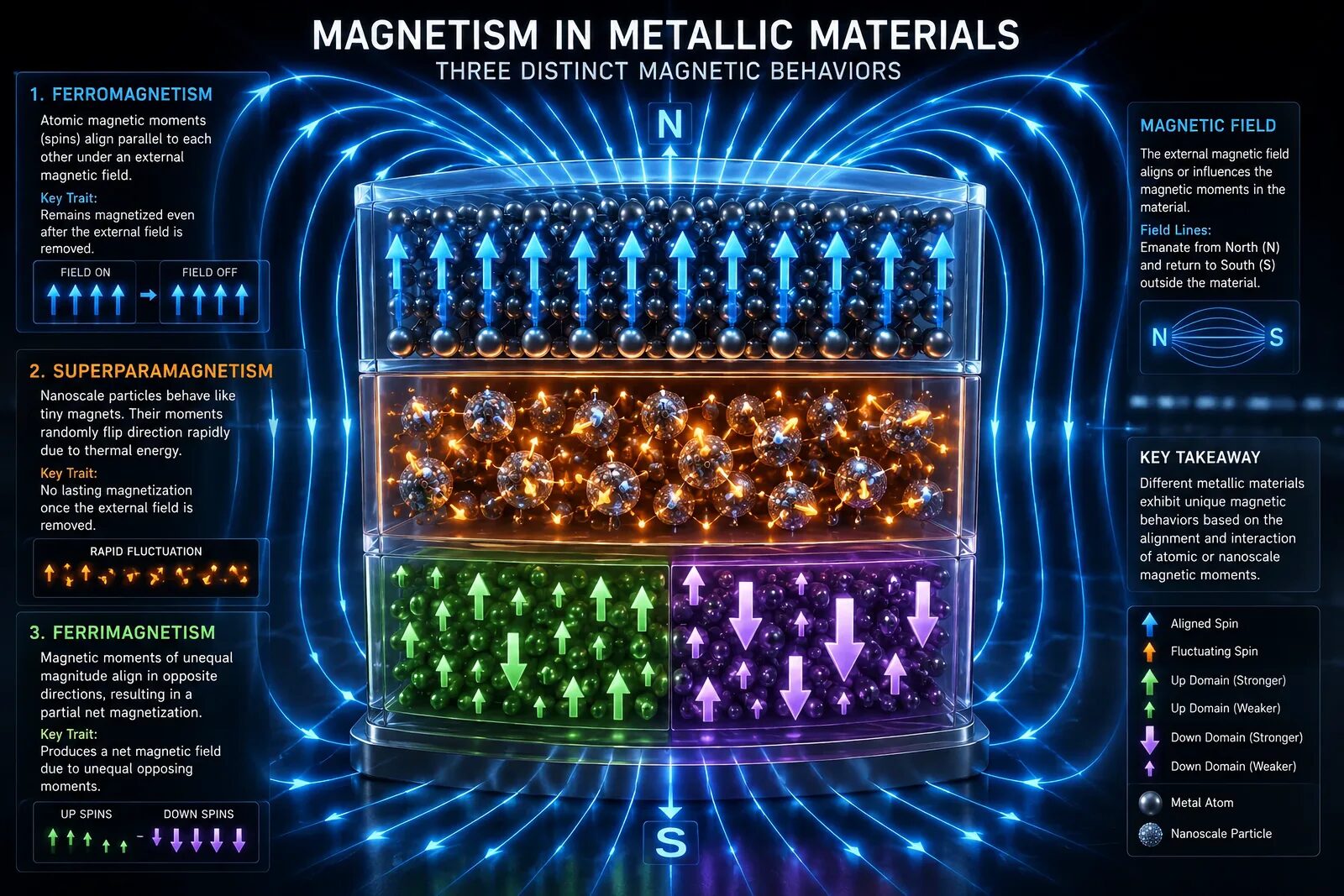

Metals and metal oxides can respond to magnetic fields in very different ways depending on size, composition, and structure. Some materials magnetize under an applied field and retain magnetization after the field is removed, a behavior called ferromagnetism. At sufficiently small particle sizes, some magnetic materials can rapidly randomize their magnetic moment when the field is removed, behaving as superparamagnets. Ferrimagnetic materials contain opposing magnetic moments of unequal magnitude, leaving a net magnetization.

These magnetic behaviors appear in metals such as iron and nickel, in metal oxides such as ferrites and nickel oxide, and in metal carbides such as iron carbide. In engineered composites, magnetic nanomaterials can contribute to EMI shielding, RF absorption, inductive response, and field-sensitive functions across polymers, ceramics, coatings, and elastomers.10

Mechanical Reinforcement

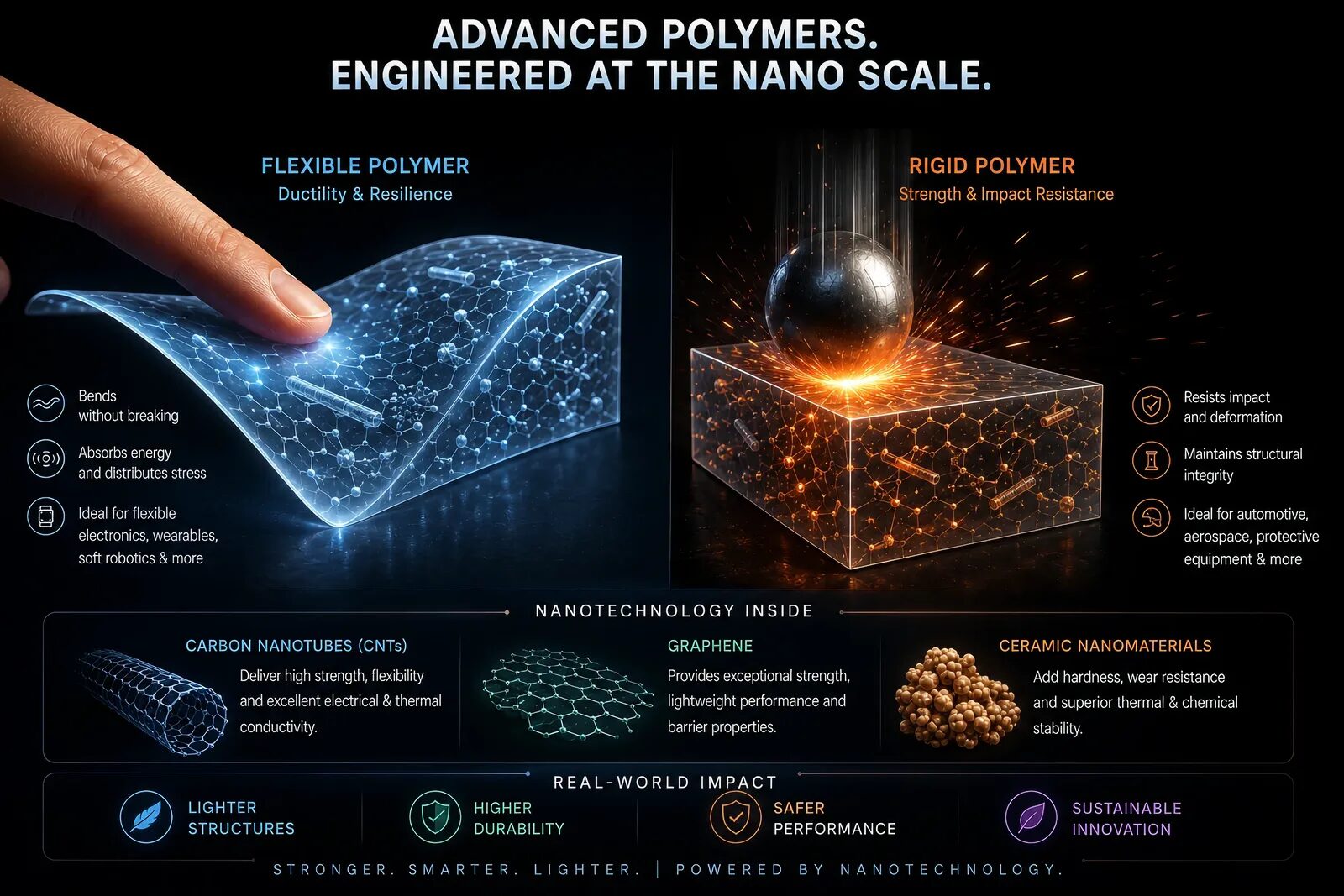

Different products demand different mechanical behavior. Some enclosures and packaging components need ductility, meaning they can flex under load without cracking. Others need high stiffness or impact resistance. In semiconductor, optical, medical, and aerospace settings, cleanliness can be just as important: a material that sheds debris during handling can be unacceptable even if its strength looks good on a data sheet.

Carbon nanotubes and graphene are widely studied for mechanical reinforcement because their intrinsic stiffness and strength are high, and because their nanoscale geometry can help transfer stress through a polymer matrix when the interface is engineered well.11 Their practical value depends on dispersion and bonding. Agglomerated nanotubes can become defects instead of reinforcement, while a well-dispersed network can improve strength, toughness, electrical behavior, or thermal behavior at lower loading.

Ceramic nanomaterials, including oxides, carbides, and nitrides, add another reinforcement path. They can improve hardness, wear resistance, stiffness, thermal stability, and chemical resistance. That combination makes them useful in electronics, aerospace, manufacturing, and optical systems where surfaces must resist abrasion or hold shape under stress.

Ultra-Low-Reflection Nanomaterials

Specialized optical systems need dark, low-reflectance surfaces to suppress stray light. Several nanostructured materials can create very black surfaces, including carbon nanotubes, metal oxides, nanostructured silicon, nickel, and gold. Carbon nanotube black coatings are especially important because their nanoscale morphology can trap light across broad wavelength ranges, including visible and infrared bands.12

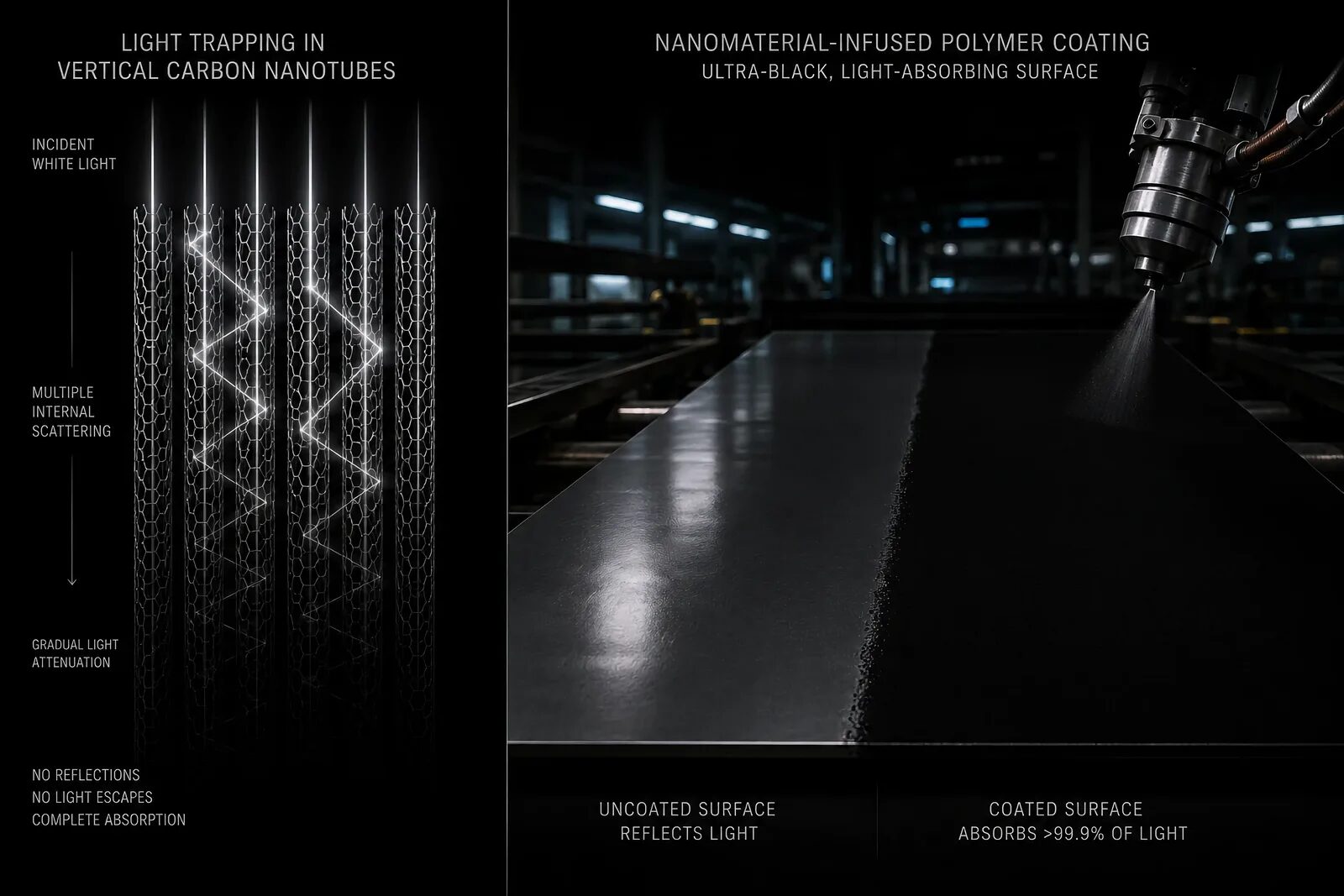

The reason is geometry. In a vertically aligned nanotube forest, incoming light repeatedly scatters between high-aspect-ratio carbon structures instead of reflecting cleanly back out. MIT reported an ultrablack CNT-based material that captured at least 99.995% of incoming light, demonstrating just how far this light-trapping effect can go under specialized growth conditions.13

The engineering tradeoff is durability and integration. The darkest vertically aligned CNT forests can be fragile and difficult to apply to arbitrary hardware. Practical coating systems often trade a small amount of absolute darkness for adhesion, handling, environmental durability, and application process. That is the space where nanocarbon coatings, refractory nanoparticles, binders, surface texture, and substrate preparation all become part of the optical design. Elect Nano's current ultra-black coating portfolio reports 2.3% hemispherical reflectance for Quantum Dusk™ and Carbon Clad™ by ASTM E1331, illustrating how nanoscale light absorption can be translated into more application-ready coating formats.14

Looking Ahead

Nanomaterials matter because they give engineers new levers. Instead of only changing the bulk resin, metal, ceramic, or coating chemistry, an engineer can tune nanoscale structure, filler geometry, surface functionalization, dispersion, interface bonding, and processing route. That can unlock property combinations that are difficult to reach with conventional fillers alone.

The same point also explains why nanomaterials are not magic additives. A material does not become high performance just because a nanoscale ingredient was added. The useful property has to survive manufacturing, scale-up, environmental exposure, and the final part geometry. Dispersion, interface chemistry, process control, and test method matter as much as the nanomaterial itself.

For Elect Nano, that is the practical focus: translating nanoscale materials into usable compounds, coatings, films, dispersions, and molded parts for demanding electrical, EMI/RF, ESD, optical, and mechanical applications. If you're evaluating materials for static control, EMI shielding, RF absorption, low-reflectance coatings, or mechanically reinforced polymers, start with the application requirement first: property target, operating environment, geometry, processing route, cleanliness, durability, and test method.

From there, the right question is not simply "which nanomaterial is strongest" or "which nanomaterial is most conductive." The better question is:

Which nanoscale structure can be engineered into the host material so the final product performs reliably in the real application?

For teams working through that question, Elect Nano can help translate the requirement into candidate materials, sample formats, testing plans, and next-step development work. Start with the dCNT dispersions, masterbatches, and compounds, ESD-safe materials, EMI shielding and absorbing materials, or ultra-black coatings portfolios, or contact the Elect Nano team with the application, target property window, process route, and environmental requirements.
